KH-3015 Fiber Laser Cutting Machine for Pipe Plate
1.The medium-power laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin.
2.Equipped with original japan imported servo motor and Taiwan precise ball screw guide rail, highest speed up to 40m/min and accelerated speed up to 1 G, 120 holes can be cut within one minute.
3.Integrated machine accessories, fast disassembly, left and right drawers collecting saves space.
4.Professionally cutting 0.5-14mm carbon steel, 0.5-10mm stainless steel, galvanized steel, eletrogalvanized metal sheet, silicium steel and some other kinds of thin metal sheets. (The laser brand can be customized, power optional from 500w-3000w )
|SPECIFICATION OF KH-3015 FIBER LASER CUTTING MACHINE|
|Working area||1500 mm * 3000mm|
|Laser Power||1000W/ 2000W/ 3000W|
|Laser Type||Fiber laser, water-cooling|
|CNC or Not||CNC|
|Resetting Position Accuracy||≤±0.01mm|
|Control Software||Cypcut, Weihong|
|Operating Temperature||0 - 40 ° C|
|Graphic format supported||BMP, HPGL(PLT), JPEG, DXF,AI, DST|
|Transfer method||Double drive rack and pinion|
|Drive modor||Imported servo motor and servo drive|
|Applied material||Carbon steel/SS and other metal plates tubes|
|Packing Dimension||3900mm * 2500mm * 2000mm (L*W*H)|
|Net Weight||Approximately 3000 KG|
Applicable materials for laser cutting machine for metal
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

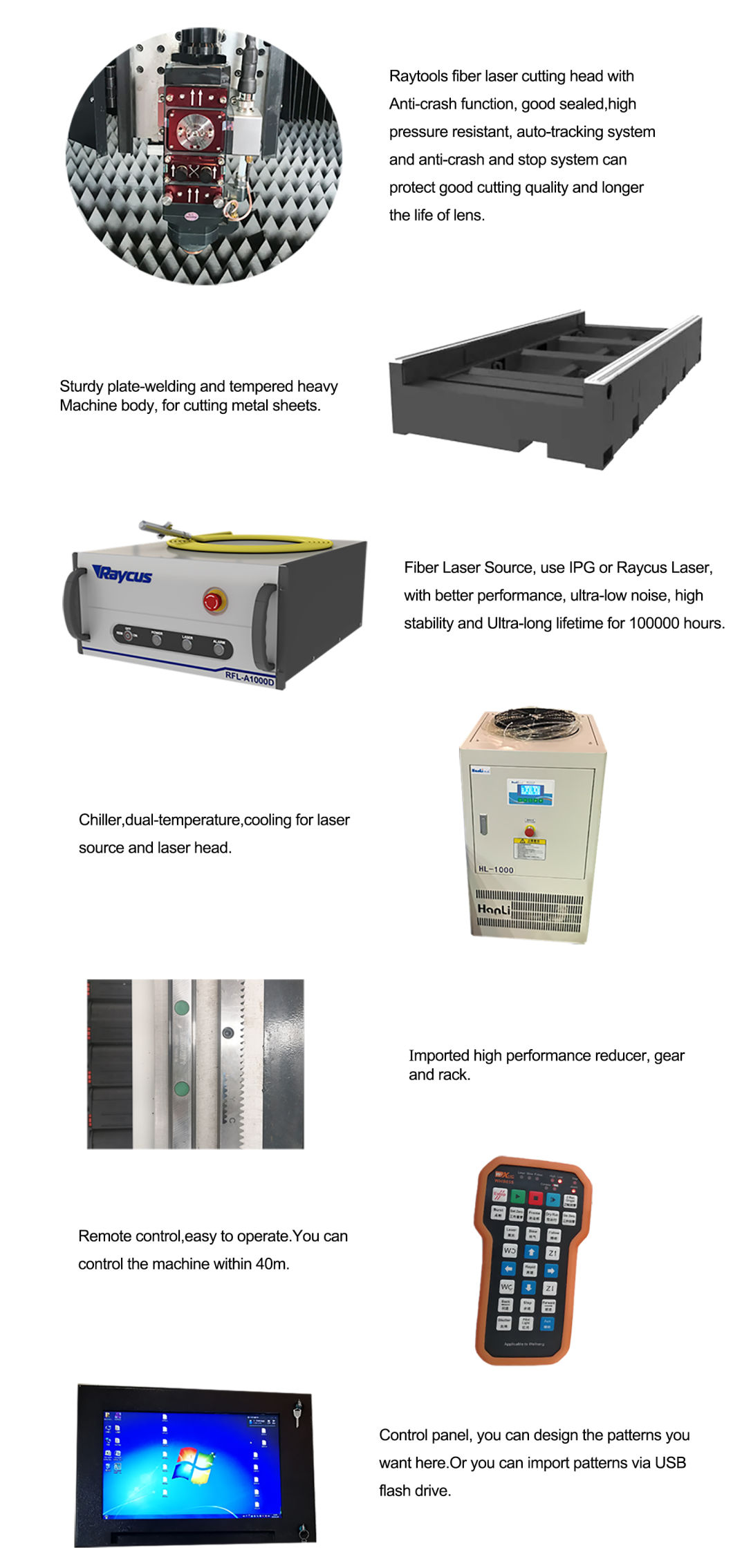

Configuration for fiber metal laser cutting machine
3000*1500mm working area;
Raytools laser cutting head;
X,Y axis Japan YASKAWA/ PANASONIC servo motor;
Z axis Japan Panasonic servo motor;
Taiwan HIWIN guide rail;
Taiwan YYC gear rack;
Japan SHIMPO reducer;
Taiwan TBI ball screw;
Japan /Taiwan pneumatic components;
France Schneider electrical components;
Cypcut control system.
Packaging & Shipping
1. Kahan CNC machine and accessories are covered by plastic sheet first.
2. Then the whole machine is packed by plywood case used for export.
3. Kahan CNC machine can be delivered by sea, by train, or by plane depending on customers.
Shipped in 15-30 working days after payment.
2 years warranty for the whole machine. Within 24 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. After 24 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video CD disk.
3. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.
Q: There are so many machine types, which one should I choose?
A: Kahan Laser provides machine parameters in each product demo page, please kindly check technical data column. It is important to compare all data before choose the best prototype. Also, our sales team provides online services to resolve your confusion, feel free to contact us.
Q:This is my first time buying your machine; I have no ideas about Kahan's machines quality?
A: Each machine is strictly produced based on the standard of ISO9000-2000, ISO14001-2004, GMC global manufacturer and CE certifications. Our products have CE certifications verified by TÜV SÜD, Bureau Veritas and etc. As china high-power laser cutting machine provider, more than 10,000 machines have been sold in the past ten years. Customer is our first priority. We are confident to tell customers that there is no need to worry about our quality.
Q: When I got this machine, but I don't know how to use it. What should I do?
A:There are videos and English manual with the machine. If you still have some doubts, we can talk by telephone or email.
Q: If some problems happen to this machine during warranty period, what should I do?
A: We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. If you have any question,just contact us freely.
