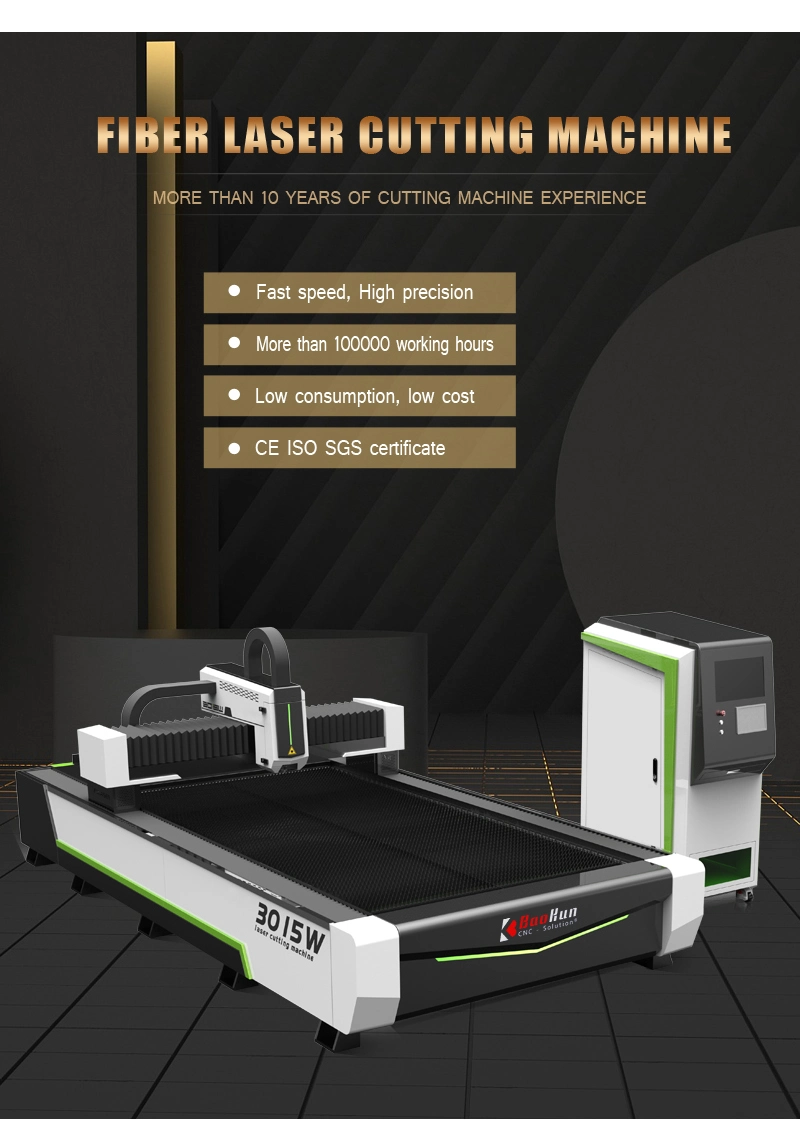

Sheet Metal 1000W Laser Cutter Machine Tube Fiber Laser Cutting 1530 2030 1560 metal cutter
Metal cutter application
This machine adopts imported rail and heavy racks from Taiwan, Japanese Fuji servo motor and driver and Swiss Raytool cutting head. All this parts match well with each other, machine's stability is great. Our this fiber not only can cut stainless steel, carbon steel, also can cut some high reflected materials, such as the aluminum and copper. Meet some customer ' s needs.
Metal cutter applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Metal cutter features:
1. Industrial heavy duty body frame, ensure the whole machine precision .
2. Imported laser head, servo motor, and gear rack on the whole machine, quality guaranteed
3. Free samples can be done for you, just send us your drawing, then we will make a real sample for you with video
4. CE ISO FDA SGS certificate can be supplied .
|Machine Name||Metal cutter|
|3||Laser machine cutting area||3000x1500mm|
(Other size can be customized,such as 4500x1500/6000x1500/6000x2000m)
|4||Fiber Laser Power||1000/1500/2200/3300/4000/6000/8000/12000/25000W|
|5||Laser wave length||1064nm|
|6||Control system||Cypcut professional control system|
|7||Motor and driver||Servo motor and driver|
|8||Laser head||Raytools laser head|
|9||Transmission system||Gear + rails|
|10||X.Y axis location accuracy||±0.01mm|
|11||X.Y axis repeat location accuracy||±0.01mm|
|12||X.Y axis max moving speed||140m/min|
|13||Max cutting speed||1--140m/min (it will according to metal material and laser power and machine configuration)|
|14||Cutting thickness||Detailed in the following cutting thickness|
|15||Application Material||Metal sheet|
Metal cutter warranty
1. 24 Months warranty for the whole machine , Our customer will be fully trained for the operation and maintaining technology after the order confirmed.Our engineer could train you on at our factory for free hour full after sales service: our skilled engineer will help customer to solve the problem by MSN, SKYPE, QQ etc in time when problems happen,if necessary, overseas service is available.
2. Quick Feedback
3."Training Video", "Instruction Book", and "Operation Manual" will be offered
4.Plenty of technical support online is available
Q: There are so many metal cutter , which one should I choose?
A: after we realized your work, we will choose the most suitable one for you with the cutting parameter, It is important to compare all data before choose the best prototype. Also, our sales team provides online services to resolve your confusion, feel free to contact us.
Q: This is my first time buying your machine; I have no ideas about your metal cutter quality?
A: Each machine is strictly produced based on the standard of ISO9000-2000, ISO14001-2004, GMC global manufacturer and CE certifications. Our products have CE certifications As china high-power laser cutting machine provider, more than 10,000 machines have been sold in the past ten years. Customer is our first priority. We are confident to tell customers that there is no need to worry about our quality. welcome you visit our factory anytime
Q: what is the machine payment term ?
A: 1. 30% payment for deposit, 70% balance payment before the shipping
2. L/C payment
3.Through Made -in -China online trade
Q: Before the balance payment, but I don't satisfied with the machine we produce , what should I do?
A: After the machine finished the production, we will text the machine at least 8 hours, after that, we will send you the machine pictures and video for you text, if you have any place not satisfied with our machine, we can change it until you satisfied, then you can pay the balance payment.
Q: Machine delivery time ?
A: Within 20 working days after get your payment.
