Mix CNC sheet metal laser cutter price CO2 500w laser cut machine for stainless steel 1325
|Machine Name||Fiber laser cutting machine|
|Laser machine cutting area||2500x1300mm|
|Fiber Laser Power|
CO2 Laser Power
|Laser wave length||1080nm|
|Transmission system||Imported ball screw|
|X.Y axis location accuracy||±0.01mm|
|X.Y axis repeat location accuracy||±0.01mm|
|X.Y axis max moving speed||30m/min|
|Max cutting speed||1--16m/min|
|Cutting thickness||Max Metal thickness: Stainless steel:0.2-3mm Carbon steel:0.2-12mm |
Nonmetal thickness: Acrylic:40mm/Plywood:15mm/MDF:18mm

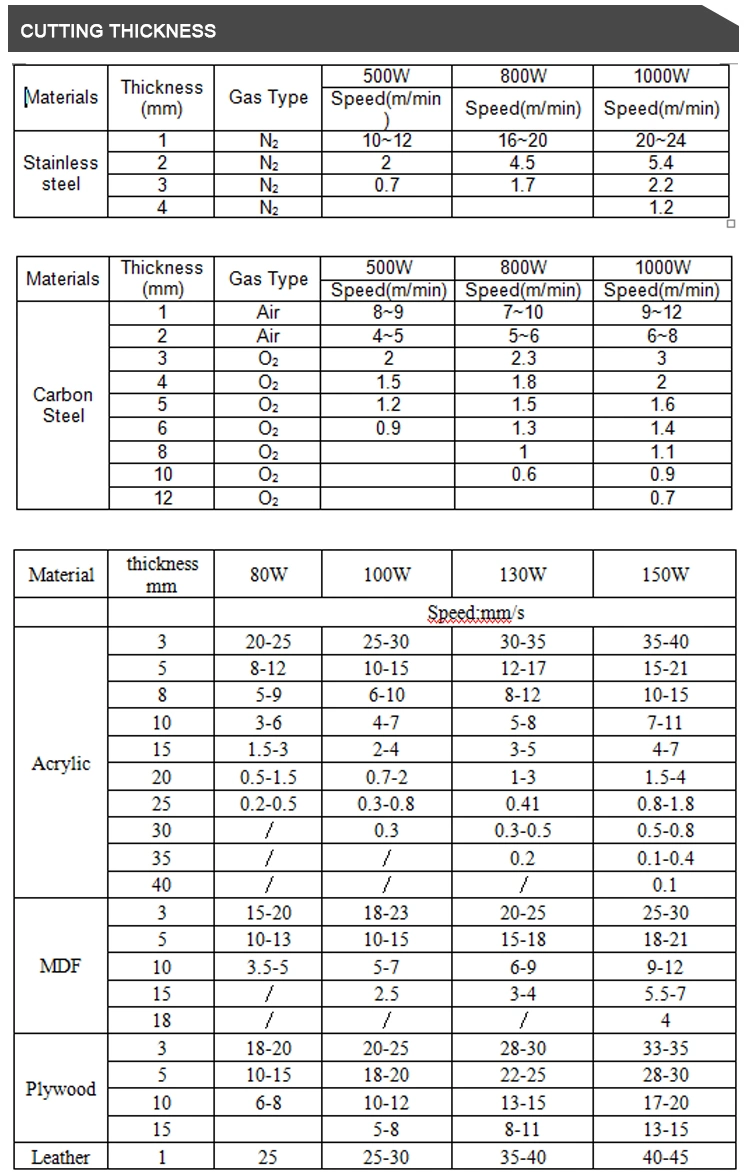

(According to detailed Power,attached cutting list following)
Fiber: Metal sheet
|Advantages||Fiber add CO2 style|
|Gross weight||2200KG(According to detailed configuration)|
|Net weight||1800KG(According to detailed configuration)|
|Machine size||4160*2190*1980mm(According to detailed configuration)|
Applied materials and Industry:
Fiber cutting head (Metal Material):
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Fiber cutting head (Metal Industries):
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
CO2 cutting head (Nonmetal Material):
Wood, Bamboo, jade articale, stone(only can engraving), organic glass, crystal(only can engraving), rubber, plastic, cloth, leather, etc.
CO2 cutting head (Nonmetal Industries):
1. Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,seal,etc
2. Woodworking: MDF,wooden mould, wood planks,bamboo, density board
3. Decoration: acrylic, organic glass, double color board, coconut shell, ox horn, ABS board,lamp shade,crafts,crystal,glass,ceramic,stone,metal coating,etc.
4. Clothing: leather,cloth,texitle,shoes,fabric,etc
1. Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.
2. High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7. Easy Operations: fiber line transmission, no adjustment of optical path.
8.It includes fiber laser cutting head and CO2 laser cutting head,it is good choice if your work materials have metal and nonmetal.
We can also customized non-standard assist equipment as your detailed work requirements.
Q1 :How about warranty?
A1: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2:2 I don't know which one is suitable for me ?
A2:Please tell me
1). Your materials.
2). Max size of your material.
3). Max cut thickness.
4). Popular cut thickness.
A3: Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q4:Do you have CE document and other documents for customs clearance?
A4: Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5:I don't know how to use after i receive Or i have problem during use,how to
1). We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2). If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer
/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
