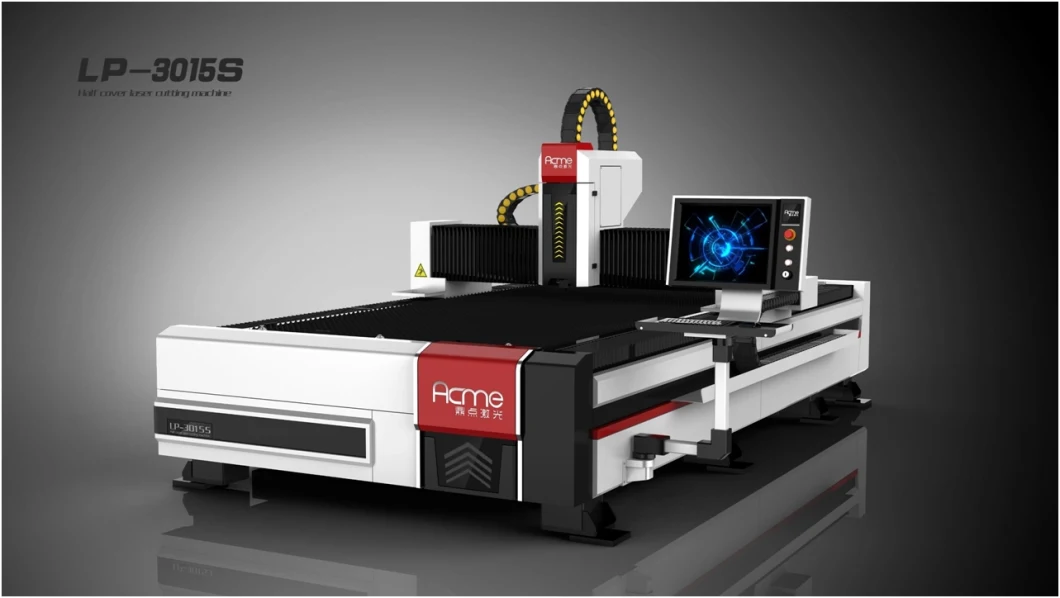

ACME Laser Cutting Machine for sheet metal 3000x1500/4000x2000mm (Other size can do customized)
ACME open type single work table fiber laser cutting machine meets CE & FDA safety standard, brings high efficiency loading material, you can do loading while machine is in cutting. Reliability and superior cutting quality with high cutting accuracy, can meet your different cutting requirement for processing various metal materials like carbon steel, mild steel, stainless steel, aluminium, copper, galvanized steel and so on.

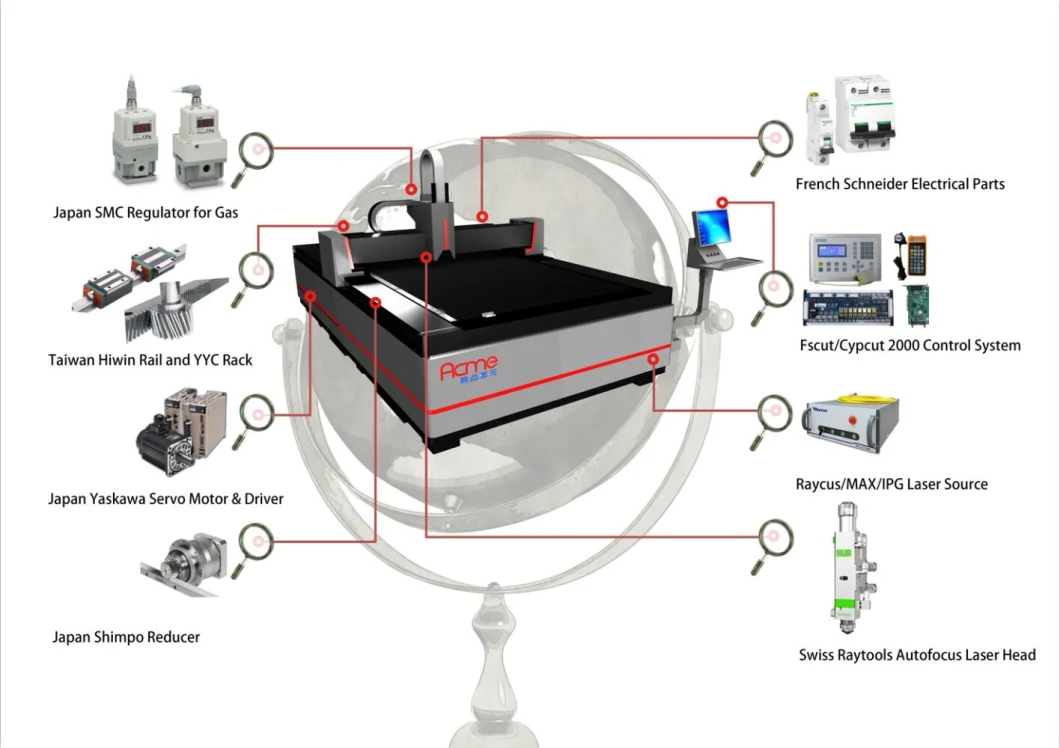

Machine main configuration
| Fiber Laser source | IPG/RAYCUS/MAXPHOTONICS/NLIGHT |
| Cutting Head | PRECITEC/RayTools Auto Focusing |
| CNC Cutting System | FSCUT CYPCUT |
| Nesting Software | CypNest |
| Water Chiller | Hanli/Tongfei/S&A |
| Servo Motor | YASKAWA sigma-7 series servo motor and driver |
| Reducer | Shimpo/MOTOVARIO reducer |
| Electric parts | Schneider |
| Pneumatic parts | SMC |
| Proportional Valve | SMC |
| Lubrication system | Automatic self lubrication system |
| Dust removal system | Dust Filtration and Removal system |
| Machine operate | Remote handheld controller and big touch screen |
Machine Technical Parameters
| Machine cutting size | 3000x1500mm/4000x2000mm/6000x2000mm and other size |
| Cutting table | Single cutting table open type |
| Maximum move speed | 120m/min |
| Positioning accuracy | ±0.03/1000mm |
| Repeat positioning accuracy | ±0.02/1000mm |
| Power supply | 380V/60 Hz (can make machine depend on your Voltage) |
| Machine size | 4535x2433x1700mm (3000x1500mm cutting area) |

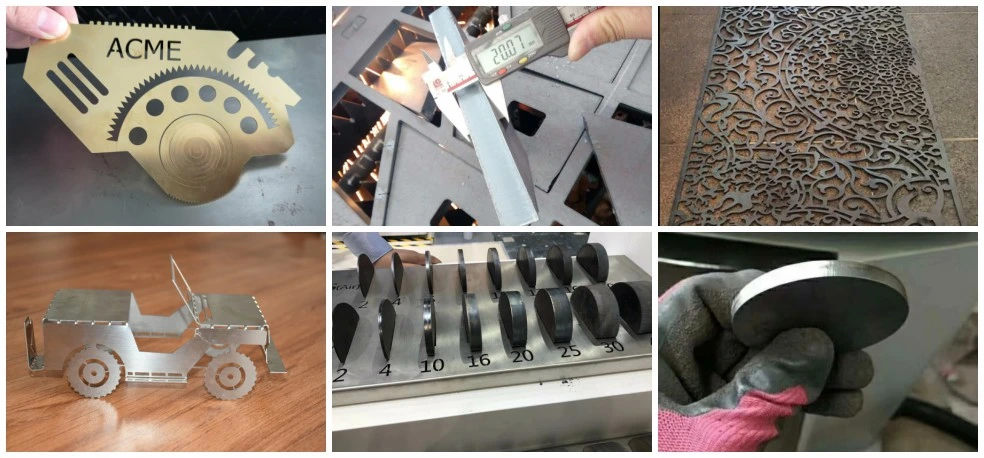

Laser Working Sample
Customer visit and exhibition
CE, FDA, SGS Various Certificate

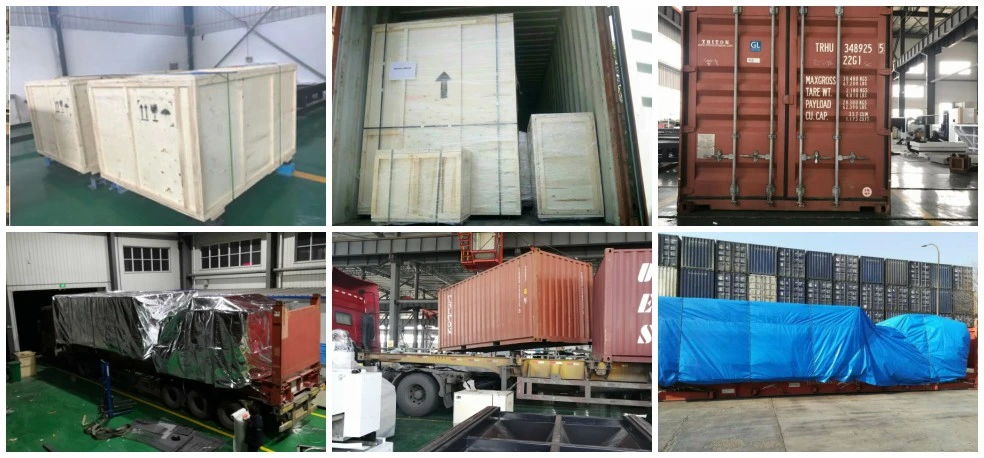

Our machine has export to 50+ countries in the world

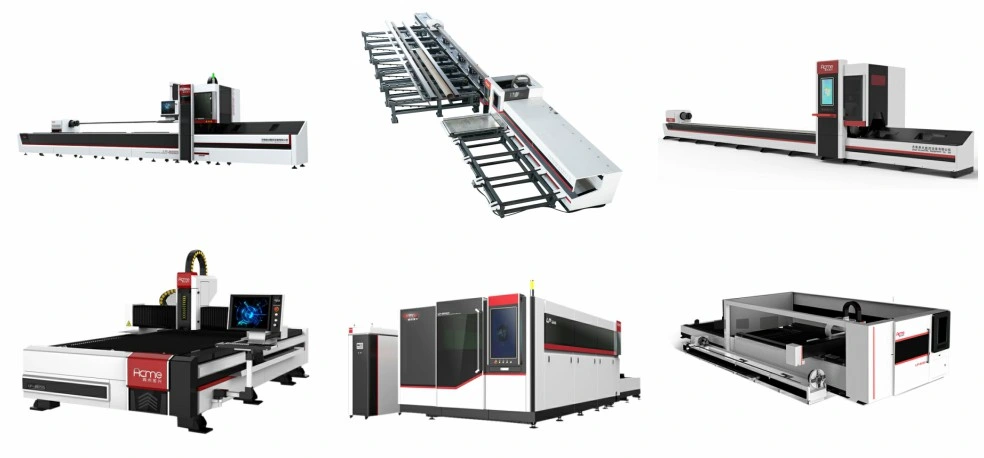

Related other products
About Us
Jinan Acme CNC Equipment Co. Ltd is a total solution provider for comprehensive laser applications, helping clients at home and abroad to process their metal sheets and tubes faster and better, when and where needed in the most cost-effective way.
We focus on laser cutting from the begining, look forward to make a great cooperation with you!
