Factory direct sales fiber laser cutter for metal tube laser cutting machine
EETO-P2060 is an specialized laser machine for cutting tubes, which adopts newest structure design, able to cut faster with high precision and stability. Duel pneumatic drive, four long-route claw clamps, which realize fast loading and change of tubes.
Applicable tubes: Φ20-Φ200mm round tubes,20*20 - 150*150mm square tubes, Side length20~150mm forrectangle, ellipse, hexagonal, Lumbar type tube.Thickness range: 0.5~10mm carbon steel tube and 0.5~8mm for stainless, galvanized, electrolytic plate, silicon steel and other thin metal tubes.
1. It adopts two groups of claws, two claws as one group at vertical side and the other horizontally, each group moves simultaneously in centripetal or centrifugal direction, ensuring tight and precise clamping.
2. Long-stoke claw design up to 60mm with pneumatic control, which enables fast and automatic change of varied diameter of tubes, vastly heighten working efficiency of machine.
3. Tube supporting device with 3-axis supporting structure, which works automatically during feeding, making tube feeding stable and Concentricity unchanged.
4. Total weight by 10 tons, and 8 meters long, obtained through secondary quenching, and shock & aging test, which guarantee working stability and precision after long periods of running..
5. Use of cantilever LCD screen control interface, supporting remote control and saving space.
6. Configure with automatic loading equipment for bulk processing ( Heterotypic tubes support semi-automatic loading), max loading volume of tube pack 800x800mm, loading weight by 2.5tons.
7. Max loading diameter or diagonal allowed for single tube Φ300mm, Max loading tube length 12m (Tailored type)
|Laser source||IPG fiber laser generator|
|Laser generator |
|Tube processing||Φ=20-200mm, L=6m|
|Tube category||Round, square, rectangular, oval tube etc, |
(can customize if need to process other tubes)
|Rotate speed||60 turn/minute|
|CNC control||Germany PA|
|Nesting software||Spanish Lantek|
|Power supply||AC380V±5% 50Hz (3 phase)|
|Total electric power||17KW/18KW|
|Repeat position accuracy||0.3mm|
|Maximum position speed||70m/min|
|Format supported||Solidworks,Pro/e,UG, etc|
|Flooring||12m x 4.5m|
1. Control cabinet
User friendly cabinet (easily trainable 19'' screen, broader perspective, convenient to operate)
2 Laser Source
We adopt Germany IPG laser source, power ranges from 700-3000w, which is stable, and service life up to 100,000Hrs
3. Neumatic clamps
1). 60 r/min, claw stroke 100mm, pipe cutting range outside diameter 20mm-200m (100mm Outer diameter in the range of adjustment)
2). No need to adjust claw, two linked right move (compatible with a variety of pipe without adjusting jaws, single adjustment save at least 30minutes)

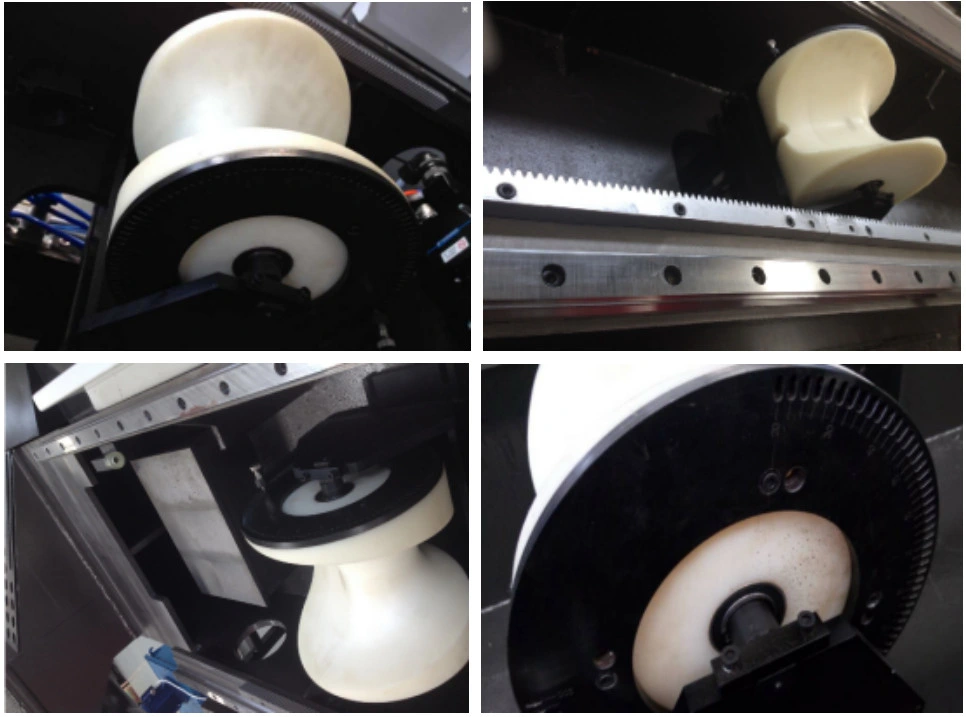

4. Lift Support
Adjustable Lift Support device, which support tube during feeding, avoid tube swingng, ensuring stability, concentricity, feeding effort, prevent swinging, automatic lifting, dockable automatic feeding
5. CNC system
- Equipped with professional Fscut Metal tube laser cutting software
- Spanish Lantek nesting CAM software to deal with the drawing to utilize metal tube materials
- Soft ware: professional cutting software compatible with many language
- Statistic analysis: in the operate table, we can clearly monitor the production quantities , length and time
- Automatic compensate: According to the cutting crevice ,it automatic give a feedback about the inaccuracy and then correct it.
- Database: Saving up the processing statistic so that you do not have to make any setting when you need to cutting the same patent.
1. Based on Service-oriented conception, complete pre-sales and after-sales services for customers will be provided like installation, testing, training and maintenance.
2. Before signing a contract, parameters and processing technics will be explained and given to customers to make product fully comprehended.
3. After signing a contract, transport vehicle or ship will be arranged to carry goods to the appointed location within delivery period, and engineers will be sent on site later for installation, lasting 1-2 days.
4. Training period takes about 3-4 days till all the operations are perfectly performed under regulations.
5. We promise to visit our customers once a year ,during the visit, we will help them with machine maintenance, operation, and enhance their knowledge and operation skills.
Operations of control panel ;
Operations of software; Clean and maintenance
Common hardware troubleshooting; Warnings during operation.
Extra Tech Support
Two-year warranty guaranteed from EX-factory, meanwhile, lifelong maintenance succeeds after warranty. Any malfunction or damage occurs during warranty ( man-made causes and force majeure exclusively), please email or call us immediately, professional engineers will be arranged on the resolution, all the charges are free including cost of changing new parts (consumable parts excluded).
Our promises: 24 hours on-line service and response time less than 2 hours
