China factory 750W 1000W 2000W Raycus CNC metal fiber laser cutting machine for Aluminum,Carbon Steel,Stainless Steel,Sheet laser cutter cheap price.Specialized fast speed cutting of a variety of metal plates, pipes(add pipe cutting device),mainly used in stainless steel, carbon steel,galvanized sheet,electrolytic plate,brass,aluminum,steel, various alloy plate,rare metal round and square pipes and tubes other materials.
|Model||DW-F1530 tubes and pipes fiber laser cutting machine|
|Laser Power||1000W/1500W/2000W /300W Raycus|
|Laser Wave Length||1064nm|
|Working Table||Saw tooth|
|Maximum Idle Running Speed||1200mm/s|
|Minimum Line Width||± 0.02mm|
|Software and Control System||Cypcut 3000|
|Position Type||Red DOT|
|Auxiliary Gas||Oxygen, nitrogen, air|
|Air Proportional Valves||For power 1000W and higher|
|Working life of fiber module||More than 100000 hours|
|Fiber laser cutting head||WEIHONG or Raytools|
|Software||Compatible with various formats|
|Water cooling system||S&A industry chiller|
|Motor||Japan Yasakawa two 850W Y motors + 850W X motor|
|Reducer||Shimpo/ ASG From Japan|
|Liner guider system||Taiwan HIWIN|
|Rack gear transmission||YYC Precision double rack drive|
|Electric component||Schneider made in France|
|Big safety cover||Optional|
|Add Tube cutter||Yes|
1. High-load mechanical mechanism.Adopting seamless welding and body bending technology. More scientific design and high-strength steel-frame structure,which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.That can make sure the machines'stable and reliable working performance.
2. Raycus brand laser source has a normal working life of 100,000 hours.The industry's best quality fiber optic manufacturer,microfiber beam 0.001mm.
3.Taiwan Hiwin high-strength linear guide and imported high precision YYC rack.That ensure the laser machine does not deform continuously for a long time working. Improve laser cutting accuracy and extend the working life of the machine.
4. High precision drive motor.The X / Y/Z axis uses a high-precision Yaskawa servo motor and drive. Improve response speed and cutting accuracy. high-precision ASG geared motor imported from Japan.

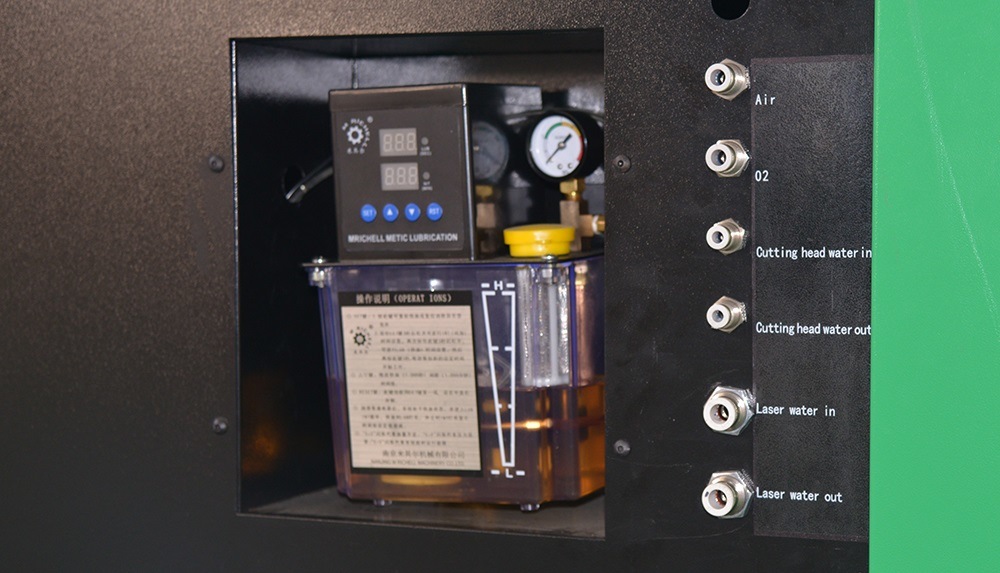

5. The rail and rack automatic oil lubrication system can set the oiling interval and the amount of oil per load according to the working conditions of the machine.
6. Auto partitioned exhausted system.The smoke gas generated by the cutting can be completely eliminated.

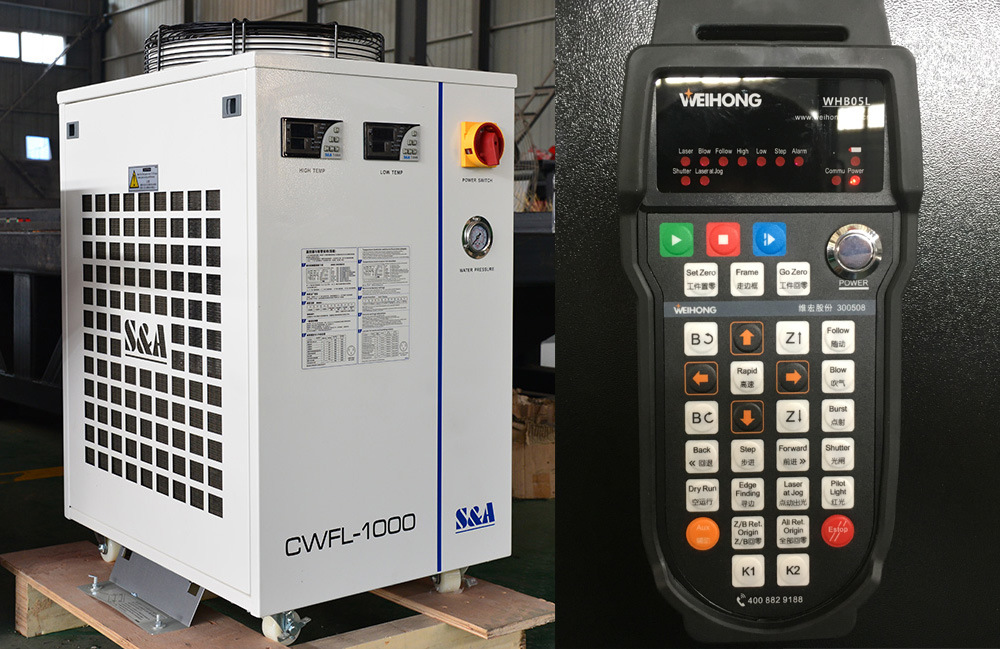

7.S&A Industrial Water cooling control system:
The fiber laser and leaser head working at high temperature can be cooled quickly to ensure that the laser machine has stable power and efficient and fast operation.Exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction, there'll be alarm prompt and stop working,can protect the working life of fiber laser effectively.

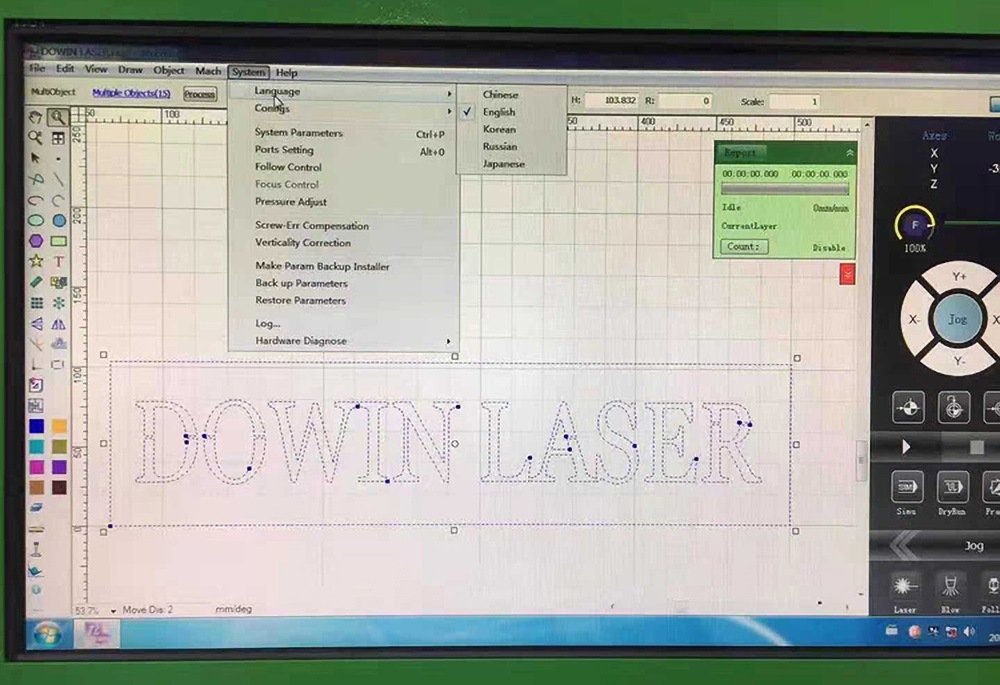

8.Cypcut professional cutting system.The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics,optimizing cutting orders automatically,searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhancing the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.
9.Tube cutter :2*3m 2*6m optional
Fiber laser cutting equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate,Carbon Steel Sheet,Alloy Steel Plate,Spring Steel Sheet,Iron Plate, Galvanized Iron,Galvanized Sheet,Aluminum Plate,Copper Sheet,Brass Sheet,Bronze Plate,Gold Plate,Silver Plate,Titanium Plate,Metal Sheet,Metal Plate,Tubes and Pipes,etc.
DOWIN Fiber laser cutting machines are widely used in manufacturing Billboard, Advertising,Signs,Signage,Metal Letters,LED Letters,Kitchen Ware,Advertising Letters, Sheet Metal Processing,Metals Components and Parts,Ironware,Chassis,Racks & Cabinets Processing,Metal Crafts,Metal Art Ware,Elevator Panel Cutting,Hardware, Auto Parts,Glasses Frame,Electronic Parts,Nameplates,etc.
Dowin Tech Co.,Ltd.Specializes in R&D and production of various laser equipment,such as laser cutting machine,laser engraving machine,laser welding machine and laser marking machine.All series machines are with One-three year's warranty. Also our service support various languages,like English,Spanish,Russian,and so on.Meanwhile,customized equipment are available according to different requirements.Within the laser engraving and cutting field,Dowinlaser has passed CE and FDA qualifications.Which assures high-efficient production and products' reliability.After years of hard work, Dowinlaser's products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and MID East etc...Facing the chances and challenges of Global Economic Integration,as well as being offered with opportunities of Knowledge Economy Era,brave and passionate,initiatively implement the enterprise management policy:"Scientific Management,Continuous Improvement,Rapid Development,Credit First,Quality First".We aim to be a professional branding,and International suppliers for various industrial solutions.
Quality and credit goes all the way. Dowinlaser, a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*Three-years warranty on the whole machine accessories if the machine parts have any problems,we can change the old machine parts to new ones free.
*Exceed three years warranty period if the machine parts have any problems,we can offer new machine parts with cost price and you also should pay all the shipping cost.
*We offer 24 hours technical support by call,email.
*Our technician can give you remote guide online(Skype/MSN/What's app/viber/Tel/Etc) if you have any question.
*Machine has been adjusted before delivery,operation disk is included in the delivery.If there is any other questions,pls kindly tell me.
*We have manual instruction and CD (Guiding Videos) for software Installation,operation and machine's using and maintenance.
3.Dowin Tech Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation.
*Training for normatively turning on/off operation of the machine.
*Instruction of technical parameters, as well as their setting ranges.
*Basic daily cleaning and maintenance for the machine.
*Solutions for common hardware problems.
*Training for other questions and technical suggestions during daily production.
4.Training can be processed in the following ways:
*Workers of customers can come to our factory to get the most professional hand-by-hand training.
*We can send engineers to customers' country and do training for workers in customers' target factory.However,tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer,Skype and other instant communication softwares.
1530 Meatl CNC fiber laser cutting machine F A Q:
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: This model is not suitable for me, do you have more models available?
Yes, we can supply many models . (130*250cm,150*300cm,150*400,200*300cm...) , and laser wattage (ranging from 500 watts to 5000 watts) If you'd like help determining which laser is right for your application or receive pricing information.
Q4:What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5:How about the documents after shipment? And how long is the delivery time?
After shipment, we'll send all original documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q6:How's the payment?
Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU) or via alibaba trade insurance order payment
Q7:Do You Arrange Shipment For The Machines?
Yes, For EXW price, It is costly to pick up machine from our factory ,we could send machines to any Chinese sea port warehouse by add some domestic shipping cost.
For FOB or CIF price, we will arrange shipment for you.
Q8:If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q9: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information.
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials. Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
